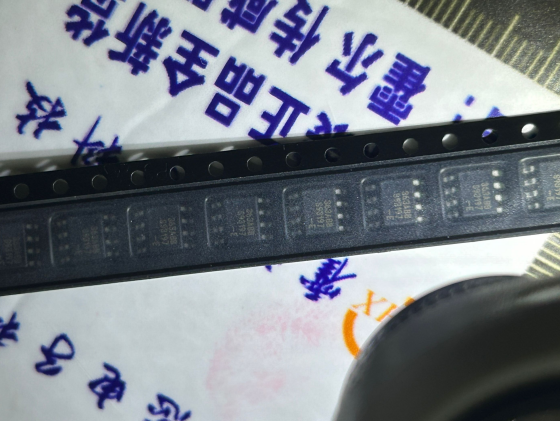

MLX90363 第 II½ 代 Triaxis® 位置传感器 IC 丝印363ABB MLX90363LDC-ABB

主要优势

绝对位置传感器 IC

旋转（轴端/通轴）、线性行程、3D/“操纵杆”

3D 磁力计模式

Description

The MLX90363 is a monolithic magnetic sensor IC

featuring the Tria⊗is® Hall technology.

Conventional planar Hall technology is only

sensitive to the flux density applied orthogonally

to the IC surface. The Tria⊗is® Hall sensor is also

sensitive to the flux density applied parallel to the

IC surface. This is obtained through an Integrated

Magneto-Concentrator (IMC) which is deposited

on the CMOS die.

The MLX90363 is sensitive to three (BX, BY and BZ)

components of the flux density applied to the IC.

This allows the MLX90363 to sense any magnet

moving in its surrounding and decode its position

through an appropriate signal processing.

Using its Serial Interface the MLX90363 can

transmit a digital output (SP – 64 bits per frame).

The MLX90363 is intended for Embedded Position

Sensor applications (vs. Stand-Alone “Remote”

Sensor) for which the output is directly provided

to a microcontroller (Master) close to the

magnetometer IC MLX90363 (Slave). The SPI

protocol confirms this intent.

The MLX90363 is using full duplex SPI protocol

and requires therefore the separated SPI signal

lines: MOSI, MISO, /SS and SCLK.

Features and Benefits

 Tria⊗is® Magnetometer (BX, BY, BZ)

 On Chip Signal Processing for Robust Position

Sensing

 High Speed Serial Interface (SPI compatible –

Full Duplex)

 Enhanced Self-Diagnostics Features

 5V and 3V3 Application Compatible

 14 bit Output Resolution

 48 bit ID Number

 Single Die – SOIC-8 Package RoHS Compliant

 Dual Die (Full Redundant) – TSSOP-16 Package

RoHS Compliant
