FLEX-14-10-15AT 力特只做原装正品  14mm簧片开关

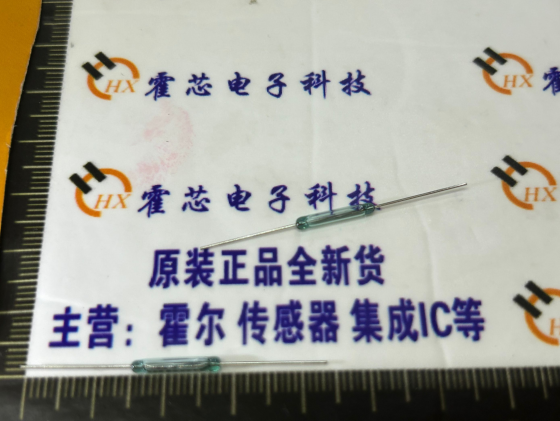

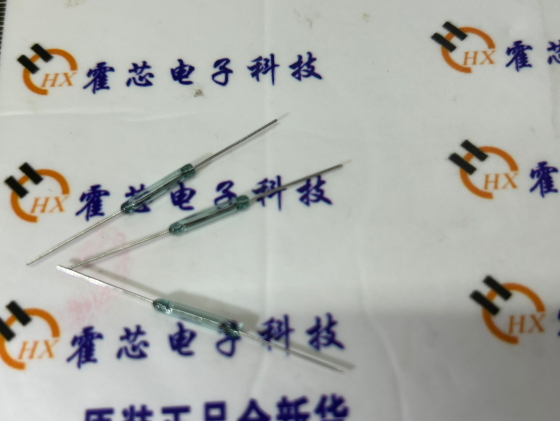

The FLEX-14 reed switch is a sub-miniature, normally open switch

with a 14.00mm long x 2.28mm diameter (0.551” x 0.090”) glass

envelope, flexible, easily formed leads, capable of switching

200Vdc at 10W. It has high insulation resistance of 1010 ohms

minimum and low contact resistance of less than 100 milliohms



 Sub-miniature, normally

open switch

■ Longer leads are flexible for

easy forming

■ Capable of switching up to

200Vdc or 0.5A at up to 10W

■ Available sensitivity range

10-30 AT

■ Hermetically sealed switch

contacts are not effected by

and have no effect on their

external environment

■ Soft leads enable reliable

hand forming

■ Zero operating power

required for contact closure

■ Excellent for switching

micro-controller logic level

loads
