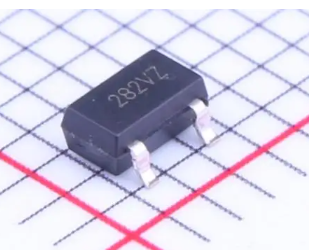

MH282KSO

⚫ DMOS Hall IC Technology.

⚫ Reverse bias protection on power supply pin.

⚫ Solid-State Reliability.

⚫ Chopper stabilized amplifier stage.

⚫ Unipolar, output switches with absolute value of South pole from magnet.

⚫ Operation down to2.5V.

⚫ High Sensitivity for direct reed switch replacement applications.

⚫ 100% tested at 125℃ for K Spec.

⚫ Custom sensitivity / Temperature selection are available.

⚫ Good ESD Protection.

⚫ RoHS compliant 2011/65/EU and Halogen Free

MH282 is an unipolar Hall effect sensor IC. It incorporates advanced chopper

stabilization technology to provide accurate and stable magnetic switch points. The design,

specifications and performance have been optimized for applications of solid state switches.

The output transistor will be switched on (BOP) in the presence of a sufficiently strong

South pole magnetic field facing the marked side of the package. Similarly, the output will be

switched off (BRP) in the presence of a weaker South field and remain off with “0” field.

The package type is in a Halogen Free version was verified by third party organization.

Halogen Free package is available by customer’s option
